LDS Log File

First step in the Troubleshooting process is to look in the log file for information. The log file can provide verbose information to help identify any problem.

The log file for Local Discovery Server is configured in the Settings file, but some examples are shown here:

The LDS allows you to separate the logging of the application from the activities managed by the UA Stack.

Users can configure the traceability level by using the configuration file for Windows.

Warning: Windows log file tracing has no limitations and can consequently consume huge quantities of disk space. Use caution when tracing. Always revert the tracing back to a safe level such as "error" or less, as soon as possible.

Enabling Verbose Logging

By default, verbose logging is disabled in order to conserve resources. Verbose logging will cause a performance decrease and should be enabled only when necessary.

Open the LDS configuration file and then modify the following settings as necessary:

[Log]

# Log System: file (custom log file), stderr

LogSystem = file

# LogFile: path to logfile. This is only required for LogSystem=file.

LogFile = C:\ProgramData\OPC Foundation\UA\Discovery\opcualds.log

# Log Level: error, warn, info, debug

LogLevel = info

In the above example you would modify the "LogLevel" to "debug". Restarting the LDS is required for the settings to take effect.

Remember: when you have finished troubleshooting you should revert the configuration back to normal and eliminate verbose logging.

UA Stack Logging

To enable logging of the UA stack (within the LDS) you can modify the following values that are found under the "[Log]" section as shown above:

# activate UaStack trace: off, error, warn, info, debug

StackTrace = error

In the above example you would modify the "StackTrace" to "debug". Restarting the LDS is required for the settings to take effect.

Remember: when you have finished troubleshooting you should revert the configuration back to normal and remove verbose logging.

Log File example

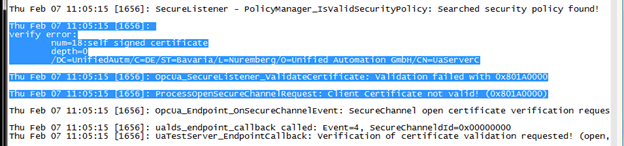

As you can see from the below screen-shot there is a problem with the certificate validation: “Validation failed with 0x801A0000”:

Since the error relates to the certificate you could check the certificate store under the “rejected” list for a rejected certificate and if found then you could simply move it to the “trusted” list to fix the error.

Log File Size Limits

LDS Version 1.03.341 added new configuration file settings to control the log file. Please review these pages for more information:
